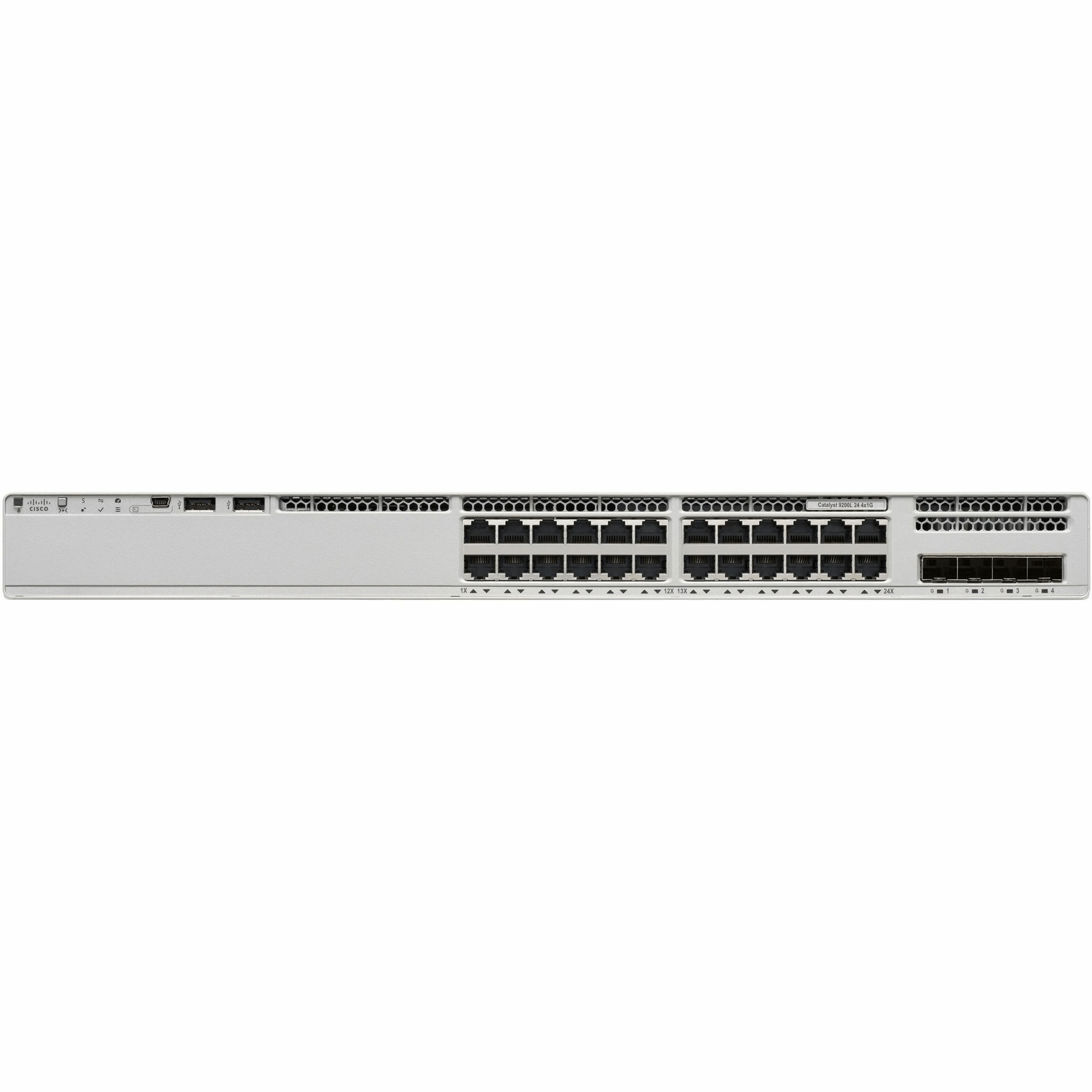

Cisco Catalyst 9200 24-Port PoE+ Switch / Network Essentials

• 24x Gigabit Ethernet PoE+ Ports
• 4x 1G SFP Uplink Ports
• PoE+ Power Budget up to 445W
• Layer 3 Switching – Network Essentials
• Advanced QoS & Security Features
• Modular Fan and PSU Design
• StackWise-160 Support

Enterprise Simplicity – Cisco Catalyst 9200 24-Port PoE+ Switch

The Cisco Catalyst 9200 24-Port PoE+ Switch delivers secure, scalable, and always-on access for business networks. Equipped with Layer 3 capabilities via Network Essentials and full PoE+ support, it is purpose-built to support growing connectivity needs including IP phones, wireless access points, and smart devices.

Reliable PoE+ Performance

With 24x Gigabit PoE+ ports and a total power budget of up to 445W, this switch supports a wide array of connected devices without the need for external power adapters. It also includes 4x 1G SFP uplinks for direct integration into core or aggregation layers.

Stackable, Modular & Secure

The Catalyst 9200 supports StackWise-160 for horizontal scaling and includes modular redundant power supplies and field-replaceable fans. Security features like TrustSec, 802.1X, and Encrypted Traffic Analytics ensure deep visibility and threat protection across the network.

Optimized for Manageability

Managed via Cisco DNA Center, CLI, or Web UI, the C9200 enables centralized control, automation, and troubleshooting. The Network Essentials license activates powerful Layer 3 features including static routing, RIP, and basic OSPF.

Technical Specification

• Model: Cisco Catalyst 9200 24-Port PoE+ Switch
• Ports: 24x 10/100/1000 PoE+ Ports, 4x 1G SFP Uplinks
• PoE Budget: Up to 445W Total
• Switching Capacity: 128 Gbps
• Forwarding Rate: 95.2 Mpps
• Stacking: StackWise-160 (Up to 8 switches)
• Software: Network Essentials (Layer 3 routing features)
• Security: TrustSec, MACsec, 802.1X, ETA
• Redundancy: Modular Fans and Power Supply
• Management: CLI, SNMP, Web UI, Cisco DNA Center
