Cisco C9130AXI-E Catalyst 9130AX Series

• Wi-Fi 6 (802.11ax)
• 4x4 MU-MIMO + OFDMA
• Up to 5.38 Gbps Throughput
• Internal Antennas
• Uplink: 1x 5GE Ethernet
• IoT Ready (BLE, Zigbee)
• Enterprise-Grade Security

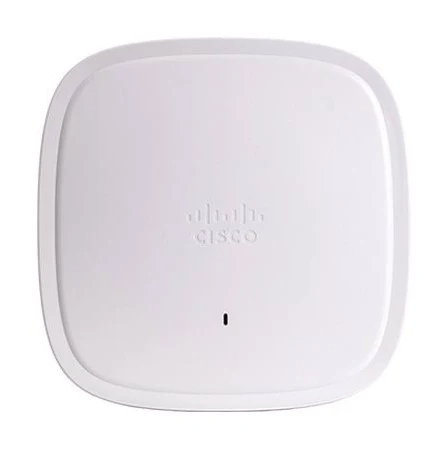

Next-Gen Enterprise Wireless – Cisco Catalyst C9130AXI-E (Internal Antenna)

The Cisco Catalyst 9130AX Series Access Point (C9130AXI-E) represents the next evolution in enterprise Wi-Fi, delivering unmatched scalability, resiliency, and performance. Designed for mission-critical deployments, it supports the latest Wi-Fi 6 (802.11ax) technology and provides seamless coverage in high-density environments.

Wi-Fi 6 Efficiency & Performance

With 4x4 MU-MIMO and OFDMA capabilities, the 9130AXI-E can serve more devices with lower latency and higher throughput. It supports up to 5.38 Gbps of total aggregate data rate—ideal for office buildings, campuses, healthcare, and large venues.

Smart, Flexible, Future-Ready

Built on Cisco’s RF excellence and CleanAir Pro, the Catalyst 9130AXI intelligently mitigates interference and adapts in real-time to optimize wireless performance. It’s also IoT-ready with integrated BLE and Zigbee radios for device tracking and automation integration.

Secure & Scalable

Backed by Cisco’s IOS XE and Cisco DNA Center, the access point offers advanced security, full programmability, telemetry, and centralized management. Pair with Cisco DNA licenses to unlock AI/ML-based insights and automation.

Technical Specification

• Model: Cisco Catalyst 9130AXI-E (C9130AXI-E)
• Wi-Fi Standard: 802.11ax (Wi-Fi 6)
• Antennas: Internal (for clean aesthetic deployments)
• Radios: Dual-band 2.4 GHz & 5 GHz + BLE + Zigbee
• MIMO: 4x4 MU-MIMO, OFDMA
• Max Data Rate: 5.38 Gbps (combined)
• Ethernet Port: 1 x 5GE (Multigigabit) + 1 x Console
• Power: PoE+ (802.3at) or Cisco UPOE
• Management: Cisco DNA Center, CLI, Web UI
• Security: WPA3, Secure Boot, Encrypted Traffic Analytics (ETA)
• Deployment: Controller-based (with Cisco C9800 series)
